Cable decorative mesh is made of high quality stainless steel, brass, phosphor bronze woven from wire drawing, stranding, co-rope, polishing, washing, weaving, sales and after-sales service and other aspects, and gradually formed the production and sale of one-stop service. Products with durable, gorgeous high-end, high-tech, are widely used in high buildings curtains, ceiling, stairs, elevators, luxury office buildings, hotels, grand ballroom, business hall and other buildings, indoor and outdoor decoration, in the light irradiation under the magnificent, elegant and refined.
-
CT-426 Cable Mesh Facade
Material: 304 316 316L
Cable Diametaer: 1.75mmX4
Cable Pitch:26.4mm
Rod Diameter:1.5mm
Rod Pitch:3mm
Weight:5.3kg/m2
-
CT-436 Cable Mesh Facade
Material: 304 316 316L
Cable Diametaer: 1mmX4
Cable Pitch:36mm
Rod Diameter:2mm
Rod Pitch:4mm
Weight:7kg/m2
-

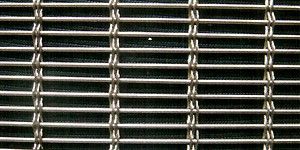

CT-436D Cable Mesh Facade
Material: 304 316 316L
Cable Diametaer: 1mmX4
Cable Pitch:36mm
Rod Diameter:2mm
Rod Pitch:4mm
Weight:7kg/m2
-
CT-4288 Cable Mesh Facade
Material: 304 316 316L
Cable Diametaer: 0.6mmX2
Cable Pitch:5.5mm
Rod Diameter:0.8mm
Rod Pitch:2.3mm
Weight:2.6kg/m2
-
CT-405 Cable Mesh Facade
Material: 304 316 316L
Cable Diametaer: 2mmX4
Cable Pitch:50mm
Rod Diameter:3mm
Rod Pitch:6mm
Weight:11.56kg/m2
-
CT-4311 Cable Mesh Facade
Material: 304 316 316L
Cable Diametaer: 3mmX3
Cable Pitch:40mm
Rod Diameter:3mm
Rod Pitch:11mm
Weight:9.5kg/m2
-
CT-3240 Cable Mesh Facade
Material: 304 316 316L
Cable Diametaer: 2.75mmX2
Cable Pitch:40mm
Rod Diameter:4mm
Rod Pitch:14.5mm
Weight:9.41kg/m2
-
CT-3270 Cable Mesh Facade
Material: 304 316 316L
Cable Diametaer: 1.05mmX2
Cable Pitch:36mm
Rod Diameter:4mm
Rod Pitch:7mm
Weight:14.9kg/m2
-
CT-3810 Cable Mesh Facade
Material: 304 316 316L
Cable Diametaer: 2mmX3
Cable Pitch:80mm
Rod Diameter:3mm
Rod Pitch:10mm
Weight:6.6kg/m2
-
CT-4305 Cable Mesh Facade
Material: 304 316 316L
Cable Diametaer: 0.45mmX3
Cable Pitch:3.5mm
Rod Diameter:0.5mm
Rod Pitch:1.6mm
Weight:2.1kg/m2
